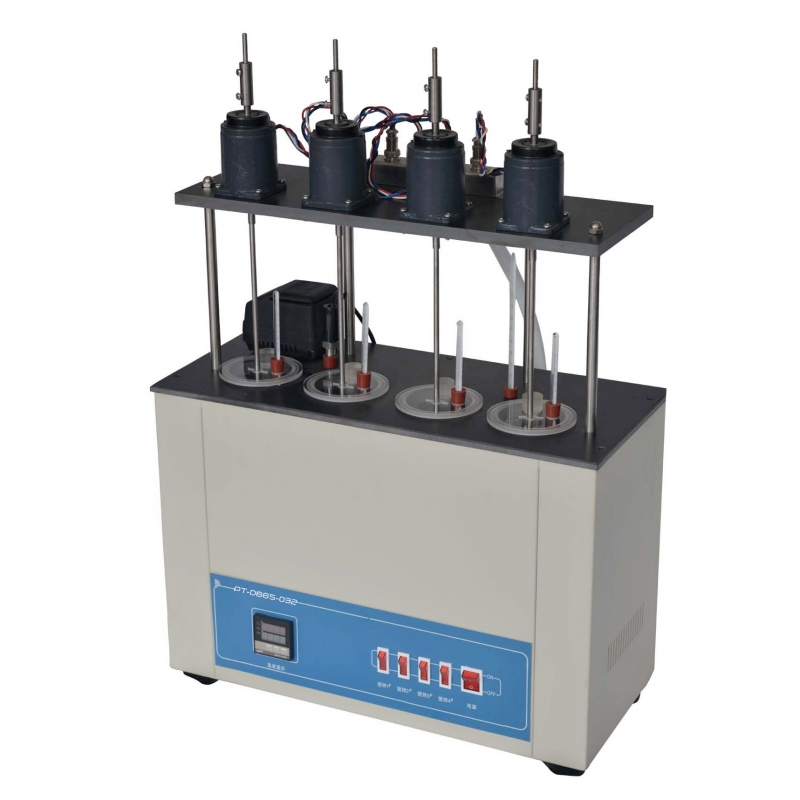

Antirust Performance Tester

Applicable Standard

GB/T 11143

ASTM D665

Performance Characteristics

The tester is applied to measuring antirust performance of the mineral oil with inhibitor under the condition of water existing.

The tester employs foreign advanced PID self-tuning temperature regulating system with digital display and low deviation as ±0.1℃.

Constant speed toothed belt pulley is provided with steady speed and low noise.

It is convenient to operate the agitator arm which rises and falls smoothly and glidingly.

The stainless steel bath is capable of accommodating four oil specimens at one time.

Technical indicators

Power supply: AC220V±10％ 50Hz

Heating power: 2.0KW

Temperature control range: from room temperature to 95℃

Temperature control accuracy: ±0.1℃

Mixing speed: 1000±50r/min

Heating power: 2KW

No. of test orifices: 4

External dimension: 530*300*820 (mm)

Remarks

DZY-032A antirust performance tester (with 6 orifices)
