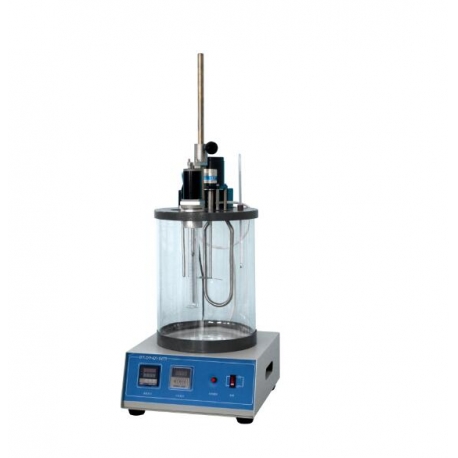

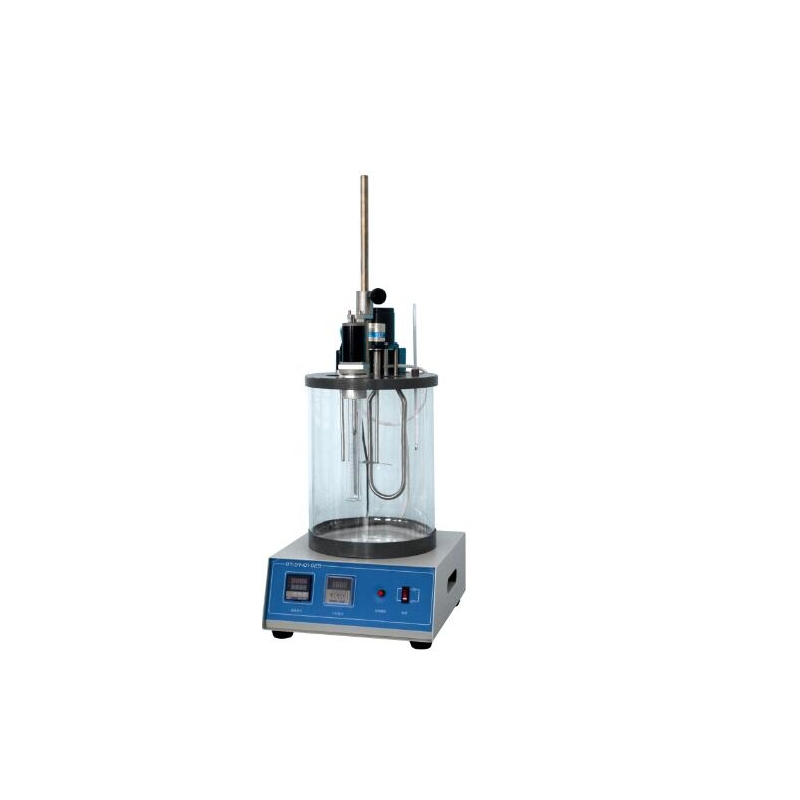

Water Separability Tester of Petroleum and Synthetic Fluid

Applicable Standard

GB/T7305

Performance Characteristics

The tester is applied to measuring the water separability of the petroleum and the synthetic fluid.

The tester employs the foreign advanced PID self-tuning temperature regulating system, provided with digital display and low deviation as ±0.2℃.

Firm and vertical agitator is characterized in steady rotational speed and convenient elevation and subsidence, guaranteeing the distance from the agitating vanes and the inner wall of the test tube.

The automatic digital timing system stops the agitation when the test is over.

The illuminating lamps facilitate the observation.

Technical indicators

Power supply: AC220V±10％ 50Hz

Heating power: 1.0KW

Temperature control range: from room temperature to 95℃

Temperature control accuracy: ±0.2℃

Mixing speed: 1500±10r/min

Heating power: 2KW

No. of test orifices: 3

Timing range: from 1s to 99min59s

Timing precision of: ±1s

External dimension: 450*550*650 (mm)
