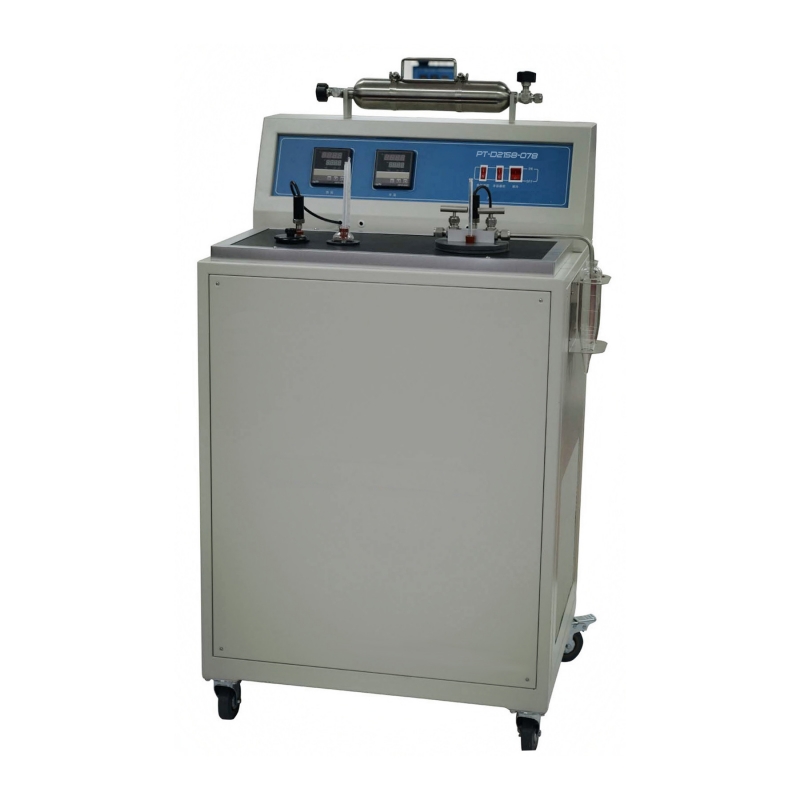

Liquefied Petroleum Gas Residue Determination Apparatus

Applicable Standard

SY/T 7509

ASTM D 2158

Performance Characteristics

The tester consists of the low temperature bath, imported double-stage refrigeration, intelligent digital display temperature control, and temperature control with liquefied petroleum gas sampling steel cylinder.

The Cold bath adopts imported double-stage refrigeration with advantages of high cooling speed and low noise.

Intelligent digital display temperature automatically controls temperature, and cold bath automatically keeps temperature of 55 ℃ constantly.

Bath inside dish on sampling pipeline, even on sampling steel cylinder, according to buy good centrifuge tube, open the valve can be sampled, easy to operate.

The feature of the tester is exquisitely crafted, which has good corrosion resistance.

The tester sitting on the ground is easy to move.

Technical indicators

(1) Power supply: AC220V±10％ 50Hz.

(2) Cooler: diameter Ø6 length 6000 mm

(3) Work accuracy: -55℃

(4)Cold bath diameter:: > 100 mm

(5) Cold depth: 300 mm
