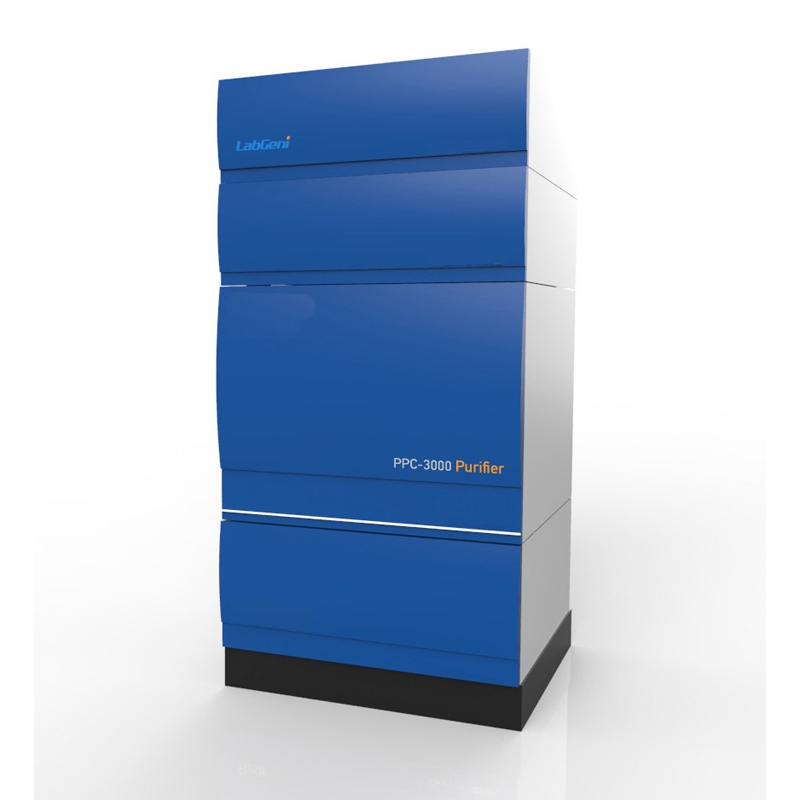

Protein Purification System

PPC-3000 Purifier -type protein purification system is a one-button protein purification system which developed by our company, mainly used to replace US company GE AKTAstart and Bio-rad company BioLogic LP protein purification systems, mainly for small life science laboratories protein purification work, compared with the traditional method, which greatly improves the efficiency of purification work, save a lot of manpower and resources.
PPC-3000 Purifier type protein purification system performance are beyond GE's AKTAstart protein purification system on pumps, detectors, fraction collector, control workstation software aspects .It has extremely powerful functions and high price-performance ration ratio, It is an ideal choice for protein purification laboratory

Application：
1, protein purification (gel, ion exchange, hydrophobic interaction, affinity, and the like);
2, nucleic acid separation and purification;
3, antibiotics polymer impurity separation and purification;
4.separation and purification of natural products;

PPC-3000 Purifier Features:
1, Adopts double PEEK high-pressure pump to form high precision gradient to avoid bubbles, has a very high practical value;

2, using high-precision constant flow pump, pulsation, stable baseline flow output accurately, the performance is far higher than the peristaltic pump system;
3, flow rate 0-10 ml / min, selectable flow rate 0-10 ml / min, may take into account the analysis and preparation;
4, four-wavelength detector, 190-850 nm can choose between any four-wavelength detection;
5, automatic fraction collector tubes eliminate the jump, disorder, overflow with a high degree of stability;
6, the bottom of the X-Y matrix type collection device without a motor, superior security disc-type fraction collector;
7, can form a high quality gradient, the performance is far higher than the gradient cup communication system;
8, high-precision fraction collection software to ensure accurate collection tube with peaks corresponding to find convenient;
9, the three-way valve with waste collector, collected continuously adapt to high pressure, can only collect the required ingredients;
10, the peak was collected to determine accurately, to avoid cross-contamination and omissions, saving manpower;
11, has a peak collection time, level, manual collection and other models, the high flexibility of use;
12, the flow cell may be different from the optical path, to adapt to different requirements analysis and purification;
13, with a database method, can be preset different purification methods called at any time, a key to complete automatic operation;
14, large range, high-precision special conductivity detector, principle, structure and import the same product;
15, standard PH detector with a temperature correction function, accuracy is better than imported products;
16, compact, very easy to put the device chromatography freezer;
17, pressure piping system substantially PEEK material, pressure and biological compatibility good;
18, the use of multi-way valve injection mode, the injection accurately, avoiding air into the system;
19, the instrument can be used automatic computer control, which greatly reduces the difficulty of use;
20, can be self-test instrument, user management, sample management, information systems can be connected to LIMS;
21, fraction collection tube up to 120, the number of collected fractions better than imported products;
22, grating monochromator, the wavelength accuracy of better than 0.2nm, diode array detection sensitivity superior products;
23, workstations Chinese interface, ease of use, in line with Chinese habits;
24, just upgrade the multi-way valve buffer Expanding component (8 or 12 species, 2-channel), the formation of more types of buffer;
25, the instrument panel can be used, tablet, laptop, desktop computer control, with a variety of options;
26, the instrument can be equipped with a large volume injection system with injection pump for large volume injection;
27, the instrument can be used multi-channel column switching system for different column switching;
28, the instrument hardware configuration and software comprehensive than AKTAPurifier purification system with a high price;
29, the instrument fraction collector can switch to a different test tube racks, varying the number of collection;

Instrument composition
1, the host (includes a binary constant high pressure pump, a buffer selector valve, multi-way injection valve);
2, detector (including full wavelength UV detector, conductivity detector, PH detector, a digital to analog converter);
3, automatic fraction collectors (including the host, test tube rack, three-way solenoid valve);
4, PPC-3000P type protein purification dedicated workstation;

Optional Components
1, automatic injector;
2, fluorescence detector;
3, large volume injection components;
4, multi-column switch assembly;
5, buffer selection system;
6, bulky collection valve;
7, wireless barcode reader;
8, chromatography freezer;

Parameters
1 solvent compatibility: Common biological molecules purified aqueous buffer;
2, the flow rate range: 0.001-10ml / min (optional 0.01-100ml / min);
3, pressure range: 0-42MPa (420bar, 6000psi);
4, viscosity: Up 5cP;
5, wavelength range: 190-850nm;
6, the optical path length: 2mm;
7, conductivity range: 1uS / cm-999.9mS / cm;
8, PH measurement range: 0-14.00;
9, PH measurement accuracy: 0.01PH unit, temperature compensation;
10, tube loading: 120 (15-18mm);
