Rust & Corrosion Tester

> >>>PT-D130-1021(1021A) Silver strip corrosion tester for jet fuel

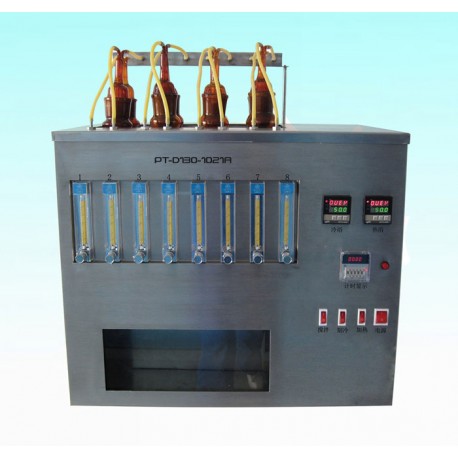

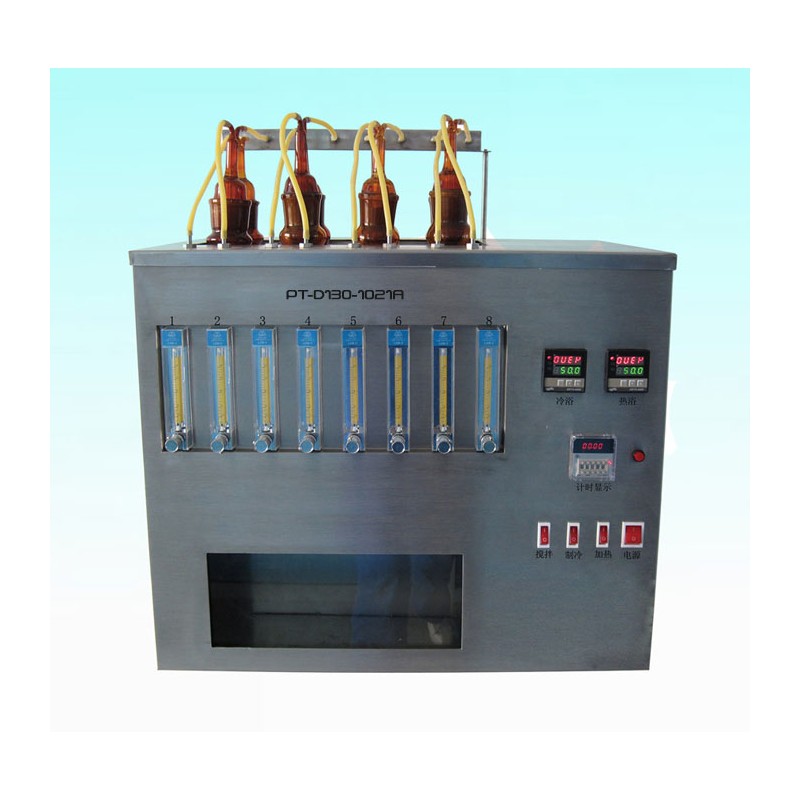

PT-D130-1021(1021A) Silver strip corrosion tester for jet fuel

PT-D130-1021(1021A)

PT-D130-1021 (1021A)Silver strip corrosion tester for jet fuel is suitable to the standards of ASTM D130 and IP227. It can test the resistance to the copper corrosion of aviation gasoline, jet fuel, motor gasoline, natural gas and other products RVP of which RVP is not higher than 124kPa.

More details

More info

Overview
PT-D130-1021 (1021A)Silver strip corrosion tester for jet fuel is suitable to the standards of ASTM D130 and IP227. It can test the resistance to the copper corrosion of aviation gasoline, jet fuel, motor gasoline, natural gas and other products RVP of which RVP is not higher than 124kPa. It can test corrosion tendency of silver component of jet fuel for aviation turbine engine fuel system.
    PT-D130-1021: 4 holes
PT-D130-1021A: 8 holes

Features

  1. The apparatus could be conducted in four-way experiment, two standard experiments, greatly improving test efficiency.
  2. The apparatus is equipped with stainless steel bath, corrosion-resistant.
  3. Using of digital display temperature controller, temperature control and high accuracy.
  4. Simple operation with elegant structure.

Technical parameters

Model

PT-D130-1021

PT-D130-1021A

Rated voltage

 AC 220V±10%  50Hz

AC 220V±10%  50Hz

Power

 1500W

2800W

Temperature control

 Digital display temperature control

Digital display temperature control

Temperature range

 Room temperature ~ 100°C

Room temperature ~ 100°C

Temperature accuracy

 ± 1°C

± 1°C

Temperature sensor

 Pt100 (Platinum resistor)

Pt100 (Platinum resistor)

Slot holes

 4 holes

8 holes

Mixing method

 Mixing motor, 1200r/min



Ambient requirement

 temperature 15~30°C   Humidity≤85%

temperature 15~30°C   Humidity≤85%

package size

 56X34X71 cm

 56X34X71 cm

gross weight

21.5 KG

21.5 KG
