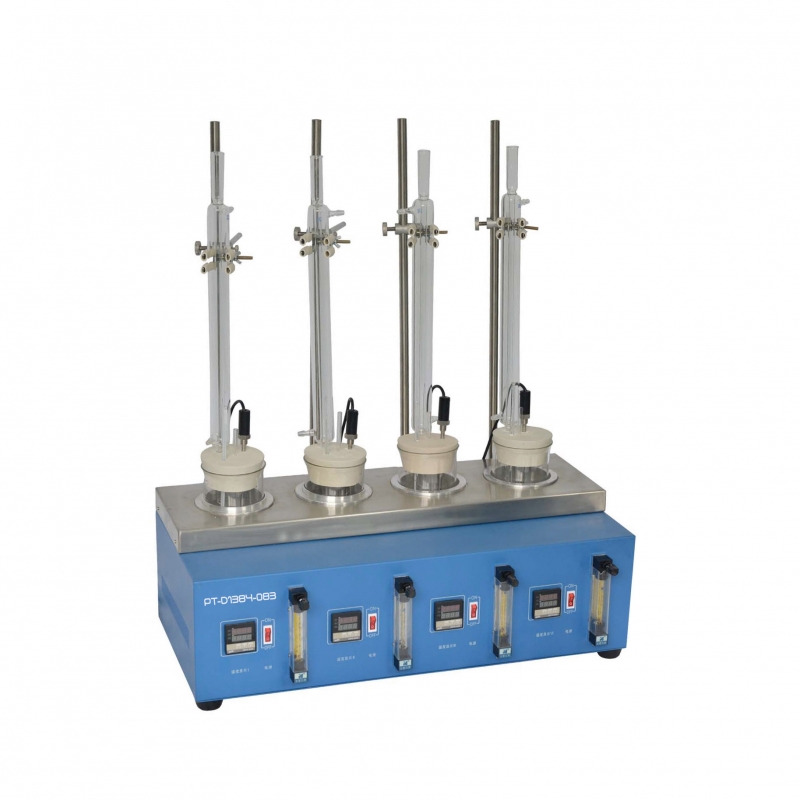

The Engine Cooling Fluid Corrosion Tester (4 Groups)

Applicable Standard

SH/T 0085

 ASTM D13842

Performance Characteristics

This tester is suitable for the determination of the degree of corrosion of typical metal specimens by engine cooling fluid.

The instrument adopts oversea advanced self-tuning temperature control system, digital display, temperature control of precision.

The heating system Metal uses aluminum plate structure. The temperature increases fast and evenly.

Air traffic control using branch approach is accurate.

the low temperature circulation cooling bath can ensure circulating water supply of the condenser pipe.

Equipped air pump can ensure the volume of inflow of the air inlet flow. It can test 4 groups at the same time.

Technical indicators

(1) Power supply: AC220V±10％ 50Hz.

(2) Heating power: 0.4KW ×4 groups

(3) Temperature control range: room temperature～200℃

(6) Temperature control accuracy: ±2℃

(7) Air mass flow: 100ml/min±10 ml/min

(8) Circulation Cold Bath Temperature Range: room temperature~-20℃

Remark: DZY-083A The Engine Cooling Fluid Corrosion Tester (6 groups)
