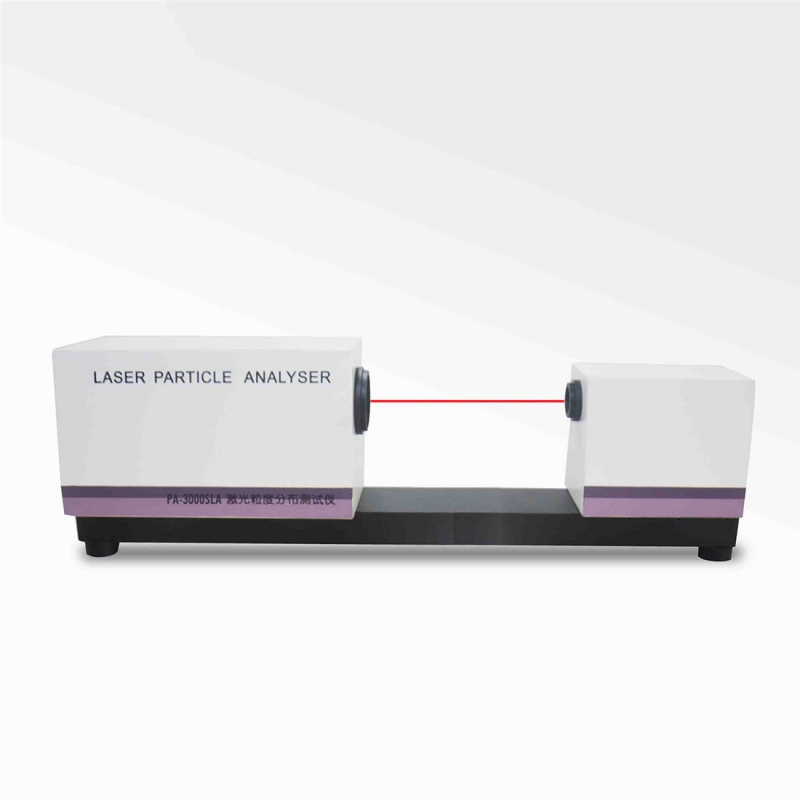

Siamese spray laser particle size analyzer

The full-scale Mie scattering theory of the spray particle size analyzer and the analysis and calculation of its proprietary technology are in line with international and other standard testing principles. Fully sealed metal case with good electromagnetic shielding and anti-interference performance. The position of the main machine and auxiliary machine is fixed, and the light spot is automatically centered. The entire test process is automatically turned on / off under the control of the computer, and the particle size data of the measured water mist, oil mist, smoke and powder mist is quickly analyzed.

Injectors, fire-extinguishing nozzles, spray-drying, aerosols, smoke, etc. To obtain accurate particle size data, fast sampling of the measured droplets, fast and representative tests, PA-3000ASL (conjoined) spray Laser particle size analyzer, suitable for detecting small volume of measured objects, unique precision mechanical structure to achieve test repeatability, good stability, high resolution. Independent intellectual property rights can achieve the purpose of controlling product quality according to customer needs.

Application area

Specially designed for the measurement of droplet size, such as nozzle manufacturing, medical spray, water mist, smog, powder mist, aerosol production, research in scientific research institutions, etc.

The report shows

Software operation interface can choose Chinese or English as required. Multiple report forms: free distribution, normal distribution, RR

Distribution, etc. Content includes cumulative particle size distribution data and curves, interval particle size distribution data and histograms, typical particle size values such as D3, D10, D25, D50, D75, D84, D90, D97, volume average particle size and area average particle size and specific surface area And other data.

Instrument advantages

1.        According to the tested component (provided by the user), it is installed between the main machine and the auxiliary machine. The distance between the main machine and the auxiliary machine is 400mm. Click the software menu, the controller automatically inputs and disconnects the measured liquid or gas, and completes the test automatically.
2.        Adopting a large-diameter, large-field-of-view Fourier lens, fully sealed, anti-pollution, and automatic optical centering system, effectively improving the test resolution and ensuring the accuracy of test data.
3.        The standard particle board is distributed randomly, and the instrument can be calibrated and verified at any time.
4.        Continuous automatic test, quick report once a second, continuous recording of multiple measurement results, with statistical comparison analysis function.
5.        using a full metal chassis, strong electromagnetic shielding performance. Reasonable mechanical structure makes the optical system stable and has strong anti-vibration ability.

Technical Parameters
