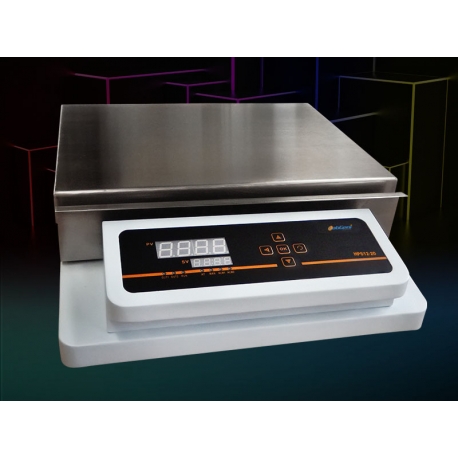

HPT,HPG,HPS
Thermostat heating plate can be widely used in agricultural testing, soil testing, environmental protection, hydrological testing, universities, industrial and mining enterprises, research institutes and other industries.
Ⅰ.Application:
Thermostat heating plate can be widely used in agricultural testing, soil testing, environmental protection, hydrological testing, universities, industrial and mining enterprises, research institutes and other industries. It is a good helper for sample heating digestion, boiling, steaming acid, thermostat, baking and other process, to meet the chemical laboratory reagent heating needs of the physical, chemical, biological, environmental, pharmaceutical, food, drink, teaching, research and other different industries.
Ⅱ.Product Characteristics:
1, the product in order to meet the needs of various experiments, and based on all kinds of acid and alkali, corrosion-resistant properties of different materials chosen as a heating element, is divided into three categories:
1), high-quality 304 stainless steel surface, corrosion level ★★
2), Teflon board, corrosion level ★★★
3), Acid and alkali resistant graphite, corrosion level ★★★★★
2, novel appearance safe and reliable performance
3, equipped with alarm, timer reservation switch function
4, a special anti-corrosion materials corrosion resistant long life
Main Technical Parameters
Model | temperature control range | Temperature | Heating material | Heating power(kw) | Working dimension(mm) | Outer dimension(mm) | Package dimension(mm) | Net weight/gross weight(kg) | Power supply /voltage |
HPT12-20 | RT-220 | ±2 | Aluminum and Teflon | 2 | 300*400 | 400*442*146 | 560*470*260 | 17/19 | 220V/50HZ |
HPS12-20 | Aluminum and stainless steel | 17/19 | |||||||
HPT12-20F | Aluminum and Teflon | 400*300*156 | 545*425*385 | 17/24 | |||||
HPS12-20F | Aluminum and stainless steel | 17/24 | |||||||
HPT24-20F | Aluminum and Teflon | 3 | 400*600 | 600*400*158 | 735*530*385 | 29/38 | |||
HPS24-20F | Aluminum and stainless steel | 29/38 | |||||||
HPS12-35 | RT-360 | Aluminum and stainless steel | 2.5 | 300*400 | 400*442*169 | 560*470*280 | 18/20 | ||
HPG12-35 | Static pressure graphite | 400*442*179 | 610*490*325 | 15/22 | |||||
HPS12-35F | Aluminum and stainless steel | 400*300*156 | 545*425*385 | 17/24 | |||||
HPG12-35F | Static pressure graphite | 400*300*152 | 14/24 | ||||||
HPS24-35F | Aluminum and stainless steel | 3.5 | 400*600 | 600*400*158 | 735*530*385 | 29/38 | |||
HPG24-35F | Static pressure graphite | 24/33 | |||||||
HPG12-45 | RT-460 | 300*400 | 400*442*179 | 610*490*325 | 15/22 | ||||
HPG12-45F | 400*300*192 | 545*425*385 | 16/23 | ||||||
HPG24-45F | 4.5 | 400*600 | 600*400*196 | 735*530*430 | 24/33 |
