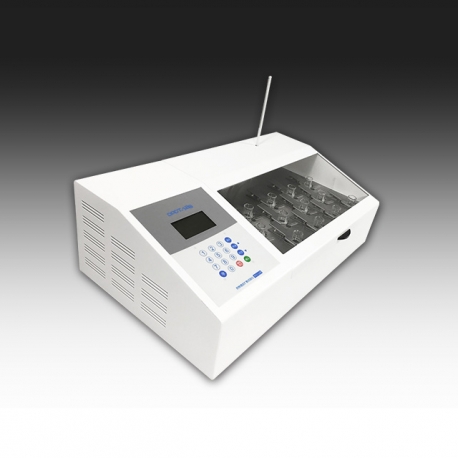

Drug Transdermal DiffusionTester

DPDT-12B drug transdermal diffusion tester is a new product jointly developed and developed by our company and the National Engineering Research Center for Pharmaceutical Preparations. The Chinese LCD screen is friendly and easy to operate. The instrument uses a vertical Franz diffusion cell to objectively reproduce the rate and extent of penetration of the formulation in a specified solvent in a solid dry thermostat container under the condition of uniform magnetic stirring. The pharmacological process is one of the current internationally accepted testing methods. The performance of the instrument is stable: the magnetic stirring force is large, the speed is uniform; the temperature control precision is high; the appearance is beautiful and generous, and it is the best detecting instrument for testing the transdermal diffusion in the pharmaceutical industry and the cosmetics industry.

Product Features

1. 12 sets of vertical diffusion cells can be installed.
2. It adopts Chinese LCD screen and has friendly man-machine interface, which is easy and convenient to operate.
3. The working parameters of the host can be preset and stored automatically. There is no need to repeat the settings for the next boot.
4. Speed control adopts subdivided power supply to drive stepping motor mode, with accurate speed, stable operation and low energy consumption.
5. The constant temperature water bath adopts built-in PT1000 sensor. The software uses PID method, which has fast heating and high precision. It can be used to correct deviations with software.
6. With self-test function and automatic protection function, it gives multiple fault signals.
