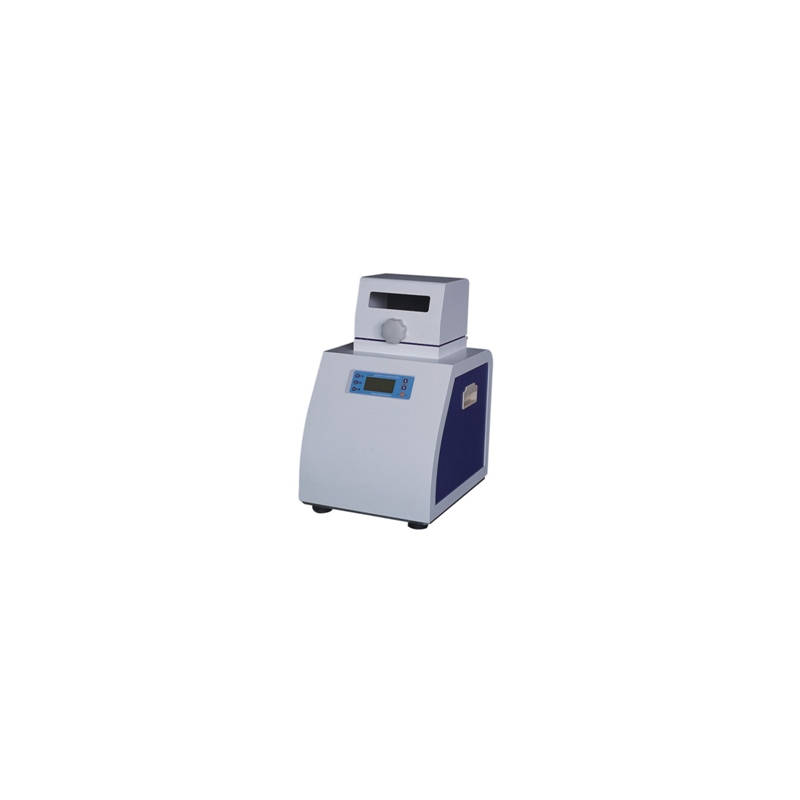

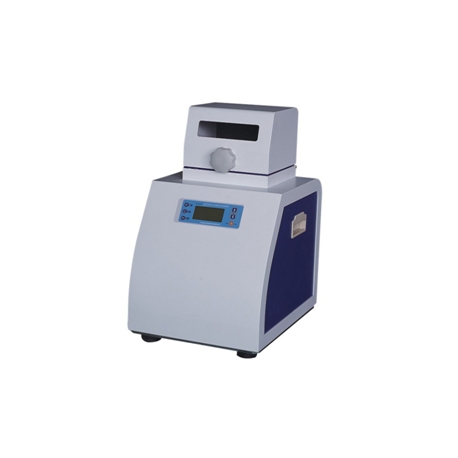

Tissue Grinder/Ball Mill

TBM series

Features:
1. It can meanwhile grind 48 samples in 3 minutes.
2. A free choice in dry grinding, wet grinding, mixing and homogenizing treatment.

More details

More info

Features:
1. It can meanwhile grind 48 samples in 3 minutes.
2. A free choice in dry grinding, wet grinding, mixing and homogenizing treatment.
3. Sample categories provided: plant tissues(Such as rice, corn, wheat, beans, peanuts, etc) ,animal    tissues(Such as muscle and the small intestine, heart, lungs, fur, bones and so on), cells, bacteria and yeast, etc.
4.  For large-throughput sample extraction of nucleic acid, the grinder can greatly enhance the efficiency and quality of grinding.

Main Technical Parameters:


Model

TBM-48

TBM-50

Timing

 1-9999 min

 0.1~5 min

Frequency

 10-70Hz

 10-70Hz

Grinding Frequency

 300-2100 times/sec

 300-2100 times/sec

Power

 180W

 120W

Display

 7’’ TFT

 LCD

Fixture schedule

 34 mm (Vertical)

 32 mm (Vertical)

Sample Size

 2 ml/48 holes, 5ml/24 holes

 1~2ml/50 holes, 5ml/24 holes
0.2 ~ 0.5ml/92 holes (Optional)
Stainless steel grinding tank 10ml, 15ml, 20ml, 50ml each 2, 100ml 1 pc (Optional)

stainless steel ball

 3mm & 6mm ball each 500 pcs

 3mm & 4mm ball each 100 pcs

Power Supply

 110/220V 50Hz/60Hz <2.5A

 110/220V 50Hz/60Hz <2.5A

Net Weight

 36KG

 36KG

Gross Weight

 46KG

 46KG

Dimensions

 369*360*520 mm

 369*360*520 mm

Packing Size

 530*485*665 mm

 530*485*665 mm

Protection

Open cover protection, emergency braking function

Open cover protection, emergency braking function
