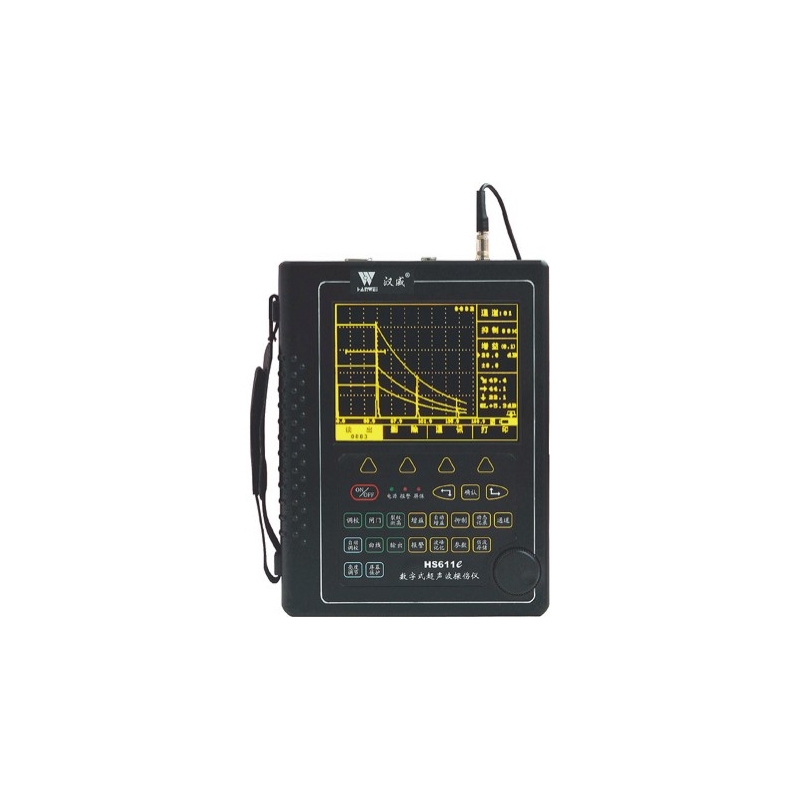

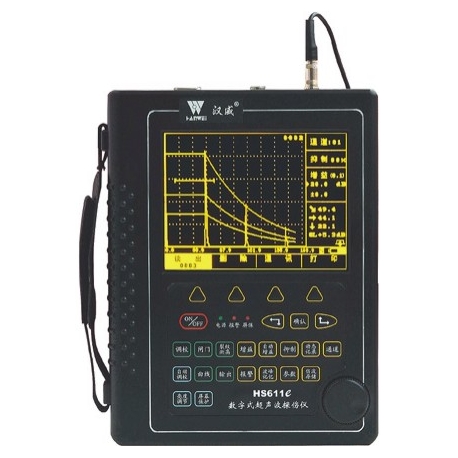

Enhanced Digital Ultrasonic Flaw Detector

HS610e

High light TFT screen; background color and brightness can be set according to environment; clear display under high-light or low-light environment.
Digital knob realize one-bottom operation
High performance lion-battery for longtime work

Compliance with European Union identification standard EN12668-1:2000
Provide a copy of the English version EU report

More details

More info

Features

  1. General

High light TFT screen; background color and brightness can be set according to environment; clear display under high-light or low-light environment.
Digital knob realize one-bottom operation
High performance lion-battery for longtime work

Compliance with European Union identification standard EN12668-1:2000
Provide a copy of the English version EU report

B. Pulse
Amplitude: selectable within 200V, 300V, 400V, suitable for wide range of probe
Duration: 100ns~300ns adjustable with step of 2ns, to match different frequency probe
Damp match: 51Ω,150Ω,200Ω,400Ω, meet requirements of different sensitivity and resolution
Probe mode: dual or single transducer

C. Testing range
0~14000mm

D. Signal condition
High speed sampling: 150MHz sampling rate
Rectify mode: dual, plus, minus and RF wave display
Gates: single gate, dual gates, hold peak within full screen waveform or hold peak within gate
Gain: Setting by step 0.1dB, 1dB, 2dB or 6dB; Gain can be automatically set according to echo amplitude

E. Alarm
Sound and light alarm according to the amplitude compared with DAC in gate

F. Data saving
50 sets of testing parameters can be calibrated and preset. User can preset the testing parameters according to the testing standards for various industries; and the testing parameters can be saved, recalled, edited, printed and sent to PC easily.
1000 sets of testing waveform and data can be saved, recalled, printed, and sent to PC easily.

G. Other function
Hold the peak and peak time
Calculate the equivalent diameter of defects
Record and replay the dynamic testing waveform
Locating defect with surface distance, depth, and sound path
Sizing the defect with SL value
Correcting the error caused by coved face

H. Real time recording
Record the real time and date of testing

I. Interface
High speed USB 2.0
RS232

J. Auto protect the screen



Specifications

Amplitude

 Selectable within 200V, 300V, 400V

Duration

 100ns~300ns adjustable with step of 2ns

Damp match

 51Ω,150Ω,200Ω,400Ω

Probe mode

 dual or single transducer

Testing range

 0~14000mm

Sampling

 150MHz sampling rate / 8bits

Rectify mode

 dual, plus, minus, and RF wave display

Frequency range

 0.5-4MHz、2-8MHz、10MHz、2MHz-20MHz

Gain

 Setting by step 0.1dB, 1dB, 2dB or 6dB

Sound speed

 100m/s~20000m/s

Dynamic range

 ≥30dB

Vertical linear error

 ≤3%

Horizontal linear error

 ≤0.1%

Horizontal resolution

 ＞40dB

Surplus sensitivity

 ＞62dB

Rejection

 0%~80%

Noise

 ≤10%

Power voltage

 220VAC or 7.2VDC

Battery work time

 5 hours

Temperature

 -10~40℃

Humidity

 20%~95%

Size

 220×175×55(mm)



Standard configuration：
1. One HS610e flaw detector (one lithium battery included)
2. Two probe wires (Q9-Q9)
3. One power charge
4. One lithium battery
5. One battery charging connecting wire
6. One set of portable work tape
7. One set of communication line and communication driver software
8. One suitcase
9. One copy of manual, certificate and warranty card
