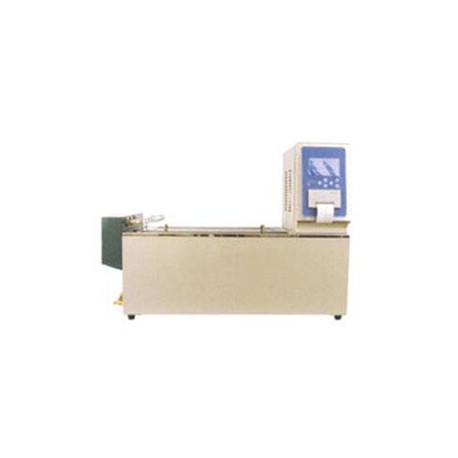

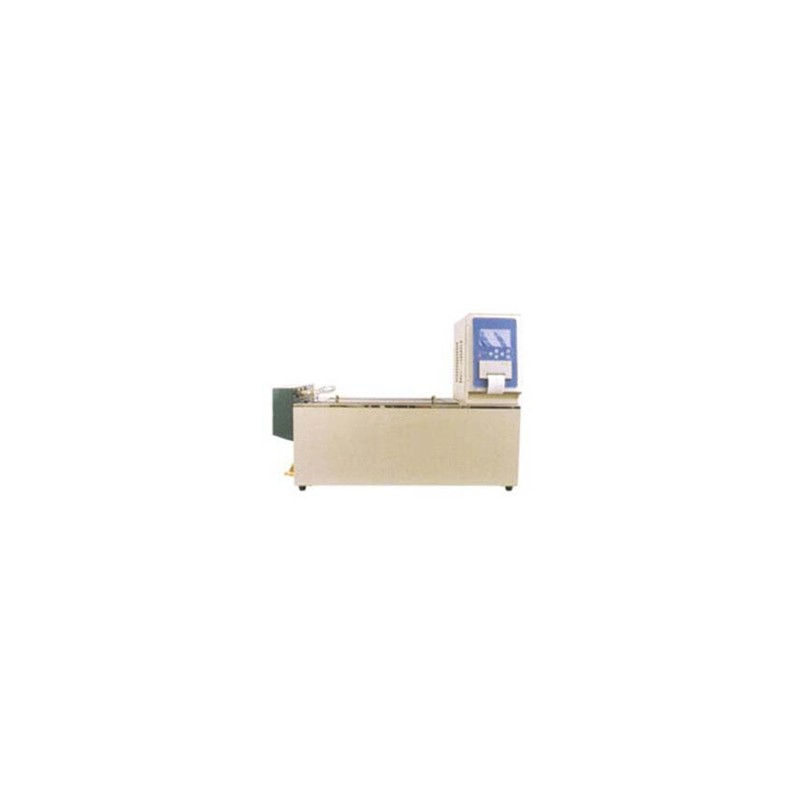

PT-D323-8017A Petroleum Products Vapor Pressure Tester (Reid Methods)

Purpose:
PT-D323-8017A Petroleum Products Vapor Pressure Tester (Reid Methods) is designed and made as per the National Standard GB/T 8017 “Test Methods for Vapor Pressure of Petroleum Products (Reid Methods)” and ASTM D 323. It is suitable to determine vapor pressure of gasoline, volatile petroleum and other volatile petroleum products. It can not be used to determine vapor pressure of LPG.

Main parameters
1. Power supply: AC 220V±10%;
2. Test bomb: can make determination for two samples or a group of parallel samples;
3. Bath temperature: 37.8°C;
4. Temperature controlling accuracy: 0.1 °C;
5. Heating power (Maximum): 1400 W;
6. Rotation mode of test bomb: reciprocating rotation along horizontal axle; the angle is 350 degree.
7. Pressure range: 0 ~ 200kpa;
8. Ambient temperature: -10~35°C;
9. Relative humidity: ≤85%;
10. Total power consumption: ≤1500W;
11. Dimensions (m): 1.05*0.56*0.68, 0.95*0.54*0.72
