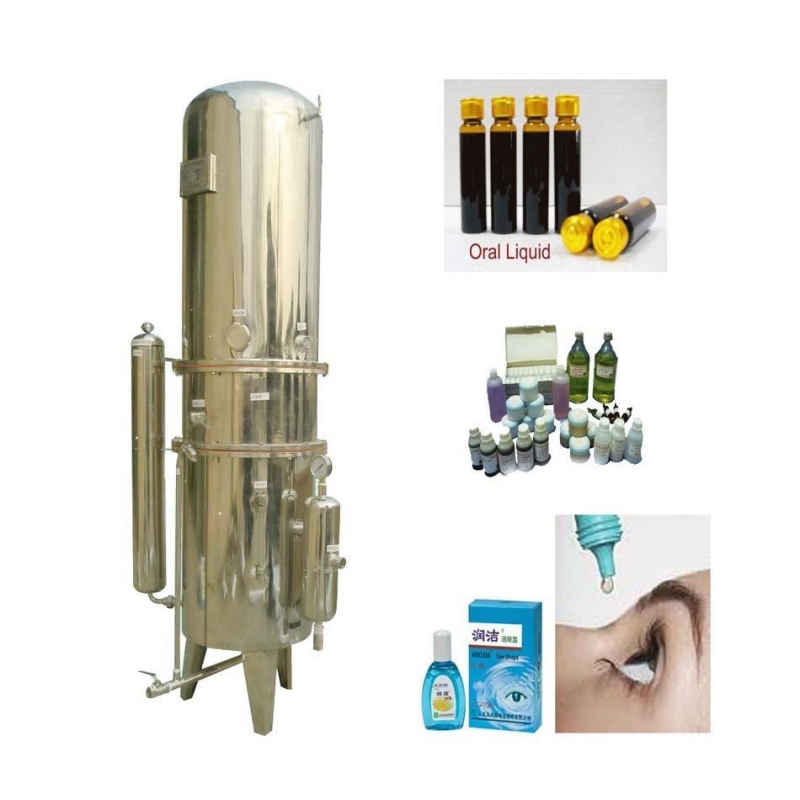

High-efficiency and Energy-saving Descaler Distilled Water Machine

High-efficiency and energy-saving descaler distilled water machine is a high-tech, energy-saving new generation high-tech product with national patent. The patent number is: 98250961.8. For the U-tube structure of the tower-type distilled water machine, it is cooled by water flow, the structure is backward, the energy consumption is high, and the scale cleaning is difficult. The high-tech energy-saving products are developed and produced. The product uses the principle of metal thermal expansion and contraction and steam, Adopt snail spiral tube evaporation, external cooling, automatic descaling process, make the scale fall to about 1mm automatically fall off, form no scale, high evaporation efficiency without pollution, energy saving effect is good, this product complies with the Chinese Pharmacopoeia standard, is tower distilled water Ideal replacement product.

Features:

1. Long life: automatic descaling, extend the service life, ensure the quality of water.
2. Provincial Steam: Steam consumes 102% of air at a pressure of 0.1-0.25Mpa and is 18% lower than that of a tower.
3. Provincial water: good water-saving performance, cooling water ratio 1:5 ratio tower 1:14 water saving 60%
4. Provincial equipment: The equipment can directly use well water or tap water to produce qualified distilled water.
5. Compared with the multi-effect distilled water machine, the reverse osmosis (electrodialysis) can be saved and the mixed bed greatly saves the investment cost.
6. Ph value adjustable: The use of temperature modulation method to adjust the content of carbon dioxide and ammonia in distilled water, to adjust the pH of distilled water, adjust the value from 5-7 randomly adjustable.
7. High quality of produced water: The conductivity of distilled water produced complies with GB<2us/cm
8. Users can choose to automatically replenish water and automatically control the water level device

Working principle:
The introduction of boiler steam, through the vapor-liquid separator, the water and impurities discharged from the sewage valve, pure steam into the evaporation tube, so that the distillation of a distillation of distilled water into steam, filtered through the diaphragm into the spiral condenser cooling water into the distilled water from the outlet . After the steam in the evaporation pipe releases heat, it liquefies itself and is injected into the evaporation pan from the fill bucket to replenish the evaporated water.

Product Usage:
Applicable to large, medium and small pharmaceutical companies, hospital preparation rooms at various levels, chemical research institutes, laboratories, beverages, batteries, mines and other units to obtain distilled water. Others: According to the customer's needs, we also design and increase the magnetic levitation and other devices so that the machine can reach unattended, and avoid the pots caused by the lack of water when people are absent.

Specifications:
