Whiteness Meter

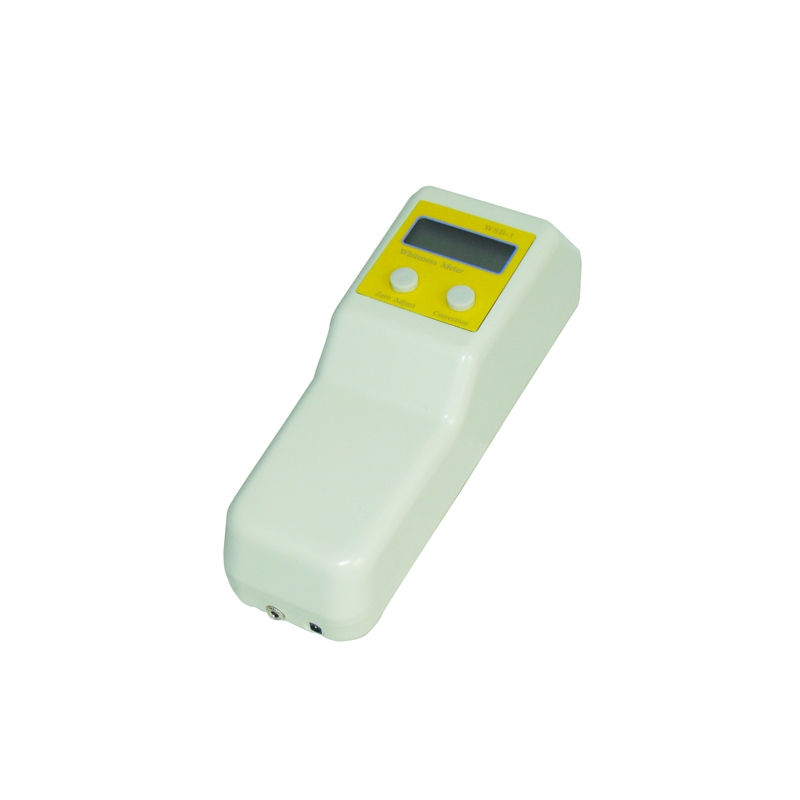

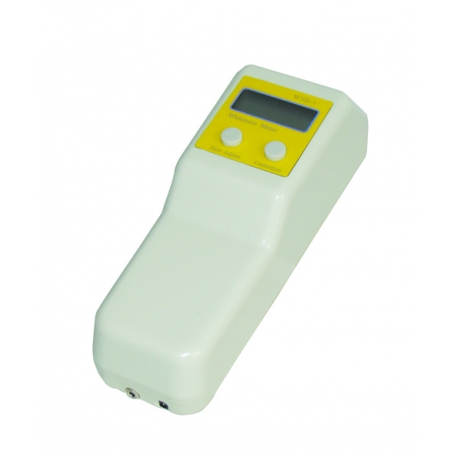

Portable Whiteness Meter

WSB-1

The WSB series whiteness degree instrument with the digital display is mainly applicable for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white.

More details

More info

Summary of functions
The WSB series whiteness degree instrument with the digital display is mainly applicable for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white. The whiteness degree can be accurately educed that is consistent with the visual degree. The opacity degree of the paper can also be accurately measured.

This instrument can be widely applied for the measurement of the whiteness degree of the objects like textile & printing & dying, oil paint & dope, chemical construction material, paper & paper plate, plastic product, white cement, ceramics, porcelain enamel, porcelain clay, French chalk, starch, flour, salt, wash, and cosmetics, etc.

Product Characteristics

  1. AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;
  2. Configured with auto power-off function ad low power dissipation circuit, able to effectively prolong service life of battery;
  3. Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;
  4. The simple operation and can accurately measure the opacity degree of the paper
  5. Adopt the standard white plate rated by the central government to convey the standard value, and the measurement is accurate and reliable
  6. Configured with output port of measured values, possible to connect with recording meter

Specifications


Measuring Range

 0-199

 Measuring Condition

45/0

Whiteness Mean

Whiteness degree of blue light  Wb=R457

Minimum Readout

0.1

Calibrate

15

Zero Draft

0.1

Basic Error

1

Repeatability

0.2

External Dimension

235*75*65 mm

235*75*65 mm

235*75*65 mm

Power Supply

DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter

DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter

DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter
